Trolley Type

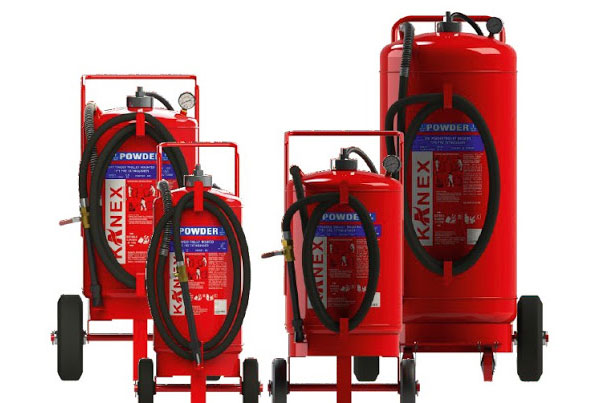

DCP TROLLEY MOUNTED

Highly mobile, these units permit a single operator quick access to extinguishing of fires that would normally require several operators with large hand portables.

PERFORMANCE DATA
MODEL WGDP 25 kg. WGDP 50 kg. WGDP 75 kg
.
Capacity 25 kg. 50 kg. 75 kg.
Extinguishing Agent Sodium Bicarbonate (SBC) Sodium Bicarbonate (SBC) Sodium Bicarbonate (SBC)
Average discharge time 25 - 30 sec 40 - 50 sec 50 - 60 sec
Height without base 980 mm Approx. 1020 mm Approx. 1030 mm Approx.
Diameter 300 mm Approx. 400 mm Approx. 400 mm Approx.
Filled weight 64 Kg 107 Kg 146 Kg
Empty weight 39 Kg. 57 Kg. 73 Kg.
Working Pressure at 20 C 15 bar 15 bar 15 bar
Test Pressure 30 kg/cm2 30 kg/cm2 30 kg/cm2
Test Pressure -30 C to 55 C -30 C to 55 C -30 C to 55 C

CO2 TYPE TROLLEY MOUNTED

We-Guard CO2 GAS extinguishers are characterized by their high performance for fires involving an electrical rick like computers, office equipment and generators etc. CO2 is non-conductive, clean and safe, ensuring minimal damage to electrical equipment and furnishings.

PERFORMANCE DATA
MODEL WGC 6.5 KG WGC 9 KG WGC 22.5 KG
Capacity 6.5 Kg. 9 Kg. 22.5 Kg.
Fire Rating
Average discharge time 10 - 20 sec 15 - 36 sec 20 - 60 sec
Height (Approx.) 960 mm Approx. 1250 mm Approx. 1155 mm Approx.
Diameter 140 - 10 mm 140 - 10 mm 232 - 10 mm
Filled weight (Approx.) 21 Kg or 23 Kg 29 kg or 32 Kg 66 kg or 69 Kg
Empty weight (Approx.) 14.5 kg or 16.5 Kg 20 Kg or 23 kg 43.5 Kg or 46.5 Kg
Maximum Service Pressure
Test Pressure 250 Kg/cm2 250 Kg/cm2 250 Kg/cm2
Operating temperature -30?C to + 55?C -30?C to + 55?C -30?C to + 55?C

MECHANICAL FOAM TYPE TROLLEY MOUNTED

Features a combination of mobility, 1-person operation & fire-killing power. We-Guard Units utilize a regulator to maintain a consistent operating pressure and flow throughout the total extinguisher discharge.

PERFORMANCE DATA
MODEL WGM 50 ltr WGM 150 ltr
Capacity 50 L 150 L
Average discharge time 40 - 180 sec 180 sec
Height without base 1285 mm 1350 mm
Diameter 300 mm 480 mm
Filled weight 87 Kg 249 Kg
Empty weight 37 Kg 100 Kg
Working Pressure at 20 C 14 kg/cm2 14 kg/cm2
Test Pressure 30 kg/cm2 30 kg/cm2
Operating temperature +5 C to +55 C +5 C to +55 C

WATER TYPE TROLLEY MOUNTED

Features a combination of mobility, 1-person operation & fire-killing power. We-Guard Units utilize a regulator to maintain a consistent operating pressure and flow throughout the total extinguisher discharge.

PERFORMANCE DATA
MODEL WGM 50 ltr WGM 150 ltr
Capacity 50 L 150 L
Average discharge time 40 - 180 sec 60 sec
Height without base 1285 mm 180 mm
Diameter 300 mm 480 mm
Filled weight 87 Kg 249 Kg
Empty weight 37 Kg. 100 Kg.
Working Pressure at 20 C 14 kg/cm2 14 kg/cm2
Test Pressure 30 kg/cm2 30 kg/cm2
Operating temperature +5?C to +55 C +5?C to +55 C
